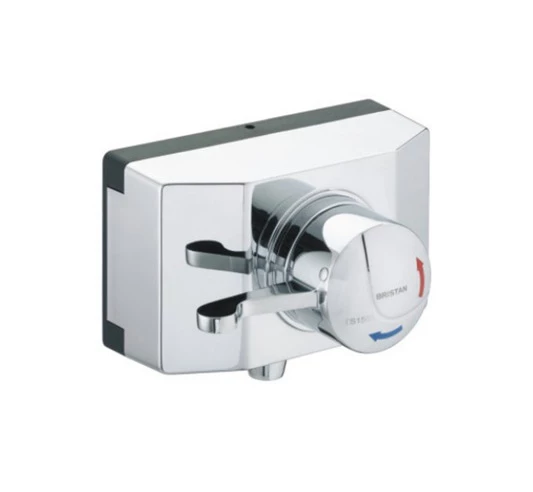

Bristan Opac Lever Ts1503 Scl Chrome – Op Ts1503 Scl C

Bristan Opac Lever Ts1503 Scl Chrome – Op Ts1503 Scl C

Specification:

• Construction: Body is of brass construction and is designed to conform to BS EN 1111:1999 (HP)
  & BS EN 1287:1999 (LP)
• Supply: Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections: 15mm compression elbows
• Outlet Connections: ½” BSP

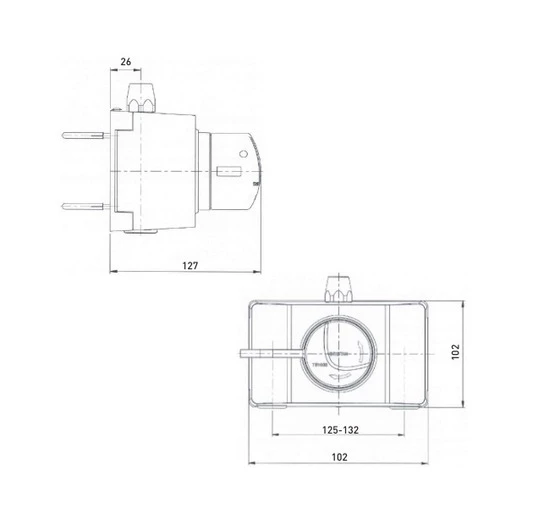

• Dimensions for Fitting: 125-132mm inlet centres
• Working Pressures: Min 0.2bar, Max 8.0bar, Maximum Static Pressure: 10.0 bar

Additional information:

• Single sequential control for both temperature & flow.
• ABS protective shroud ensures safe surface temperature.
• Automatic thermostatic shut-off in the event of hot or cold
  water failure.
• Check valves and serviceable filters as standard.
• Adjustable inlet centres of 125-132mm.
• Chrome plated to BS EN 248.
