Name: Grundfos Single 22Mm Surrey Flange As0009 - 98381636
SKU: C2HVD 98381636
Availability: InStock

Product Description

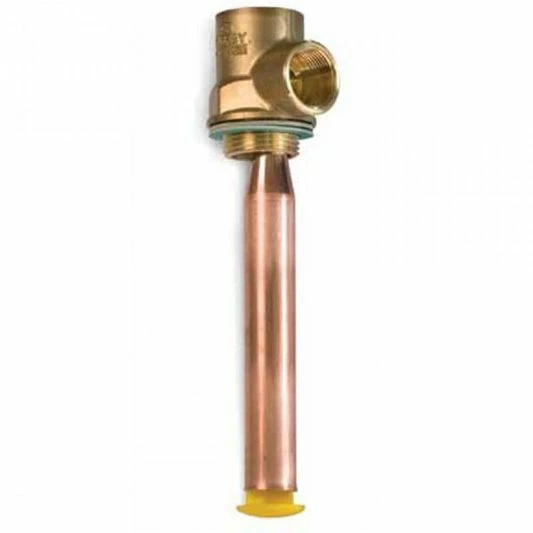

Grundfos Single 22Mm Surrey Flange As0009 – 98381636

Product Specification

Grundfos Watermill Surrey Flange is designed to provide constant hot water supply without air surging. The design of the Surrey flange air vent automatically purges the shower circuit preventing air accumulation in the hot water shower feed. Installation of a Surrey Flange is recommended for shower pumps upto and including 3.0 Bar pressure.

Surrey Flange benefits:

Industry standard independent hot water supply for pump
Reduced air (incorporates unique auto air vent)
Reduces surging
Reduces noise vibrations
Reduces temperature fluctuations
Automatically purges air from the hot water supply
Ensures splutter-free showering
Surrey Flange (15mm and 22mm available)
1″ Male BSP x 3/4″ Female outlet (pumps upto 3 Bar pressure)
1″ Male BSP x 1/2″ Female outlet (pumps upto 1.5 Bar pressure)

Manufacturer	Grundfos
Pump Model	Surrey Flange 22mm (1″) Single
Product Code (SKU)	AS009
Pump Type	Shower
Material	Brass
Voltage	No
Dimensions	N/A
Weight	1.0000
Max. Flow	N/A
Max. Head	N/A
Motor Size (kW/W)	N/A
Cable Length	N/A
Full Load Current (FLC)	N/A
Single/Twin	No
