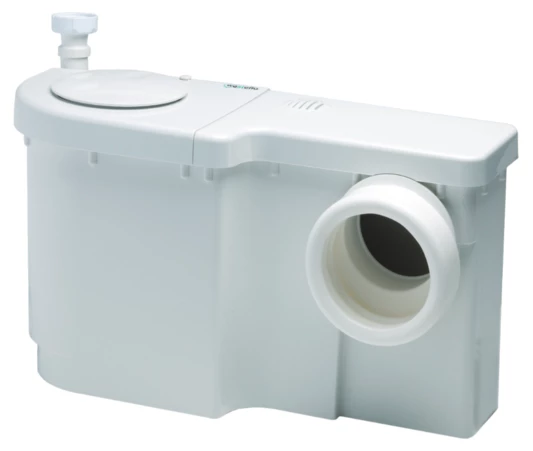

Name: Stuart Turner Wasteflo Pump (Wc 1) - 46626
SKU: C2HVD 46626
Availability: InStock

This Wasteflo macerator is ideal for converting
any area into a simple cloakroom with a toilet only.

Key features:

Removable cassette system which houses all electrical and
mechanical components, making the appliance easy and clean to
maintain without having to remove pipework or the appliance
Extremely quiet macerator. Operates under 60 dB allowing the appliance to be located anywhere.
Powerful performance. Pumps up to 5 m vertically or 52 m horizontally
Compact design.
Reliability built in.

Technical Specification

General
Guarantee	2 Years
Features
Adjustable WC coupling
Slimline design
Easy access cassette unit
Noise level	50 dB (typical)
Performance
Maximum head	5.4 metres
Pumping distance (vertical)	Up to 5 metres
Pumping distance (horizontal)	Up to 52 metres
Maximum flow	90 l/min
Maximum ambient air temperature	40 °C
Min / Max water temperature	Min 4 °C / Max 50 °C
Connections
WC	102 mm dia.
Inlet(s)	N/A
Outlet	32 mm, 28 mm, 22 mm wastepipe adaptor
Motor
Duty rating	Continuous
Electrical
Power supply/phase/frequency	230 V a.c./ 1 / 50 Hz
Current (full load)	2.2 Amps
Power consumption	500 Watts
Fuse rating	5 Amps
Power cable (pre-wired)	1.5 metres

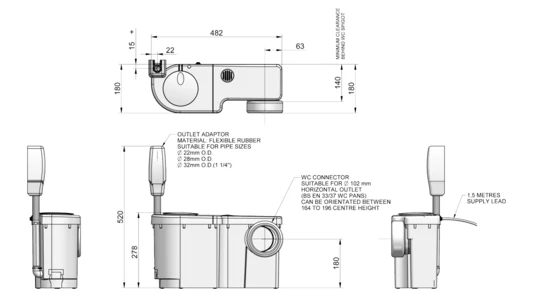

Physical
Enclosure protection	IPX4
Length	482 mm
Width	180 mm
Width behind pan	140 mm
Height (excluding hoses)	278 mm
Weight (including fittings)	7.9 Kg
