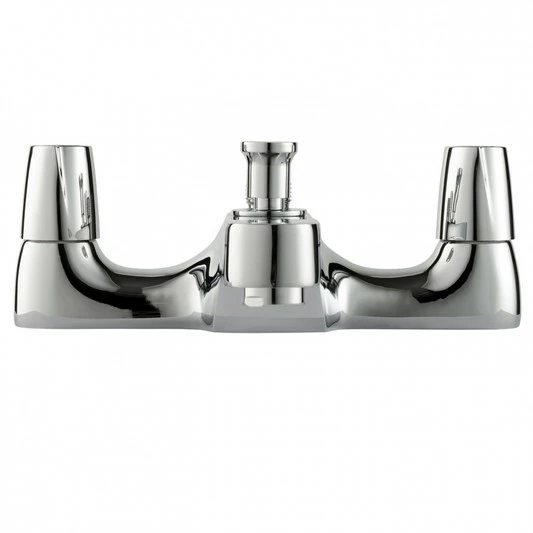

Name: Triton Exe Bath Shower Mixer - Unexbsm
SKU: UNEXBSM
Availability: InStock

Product Description

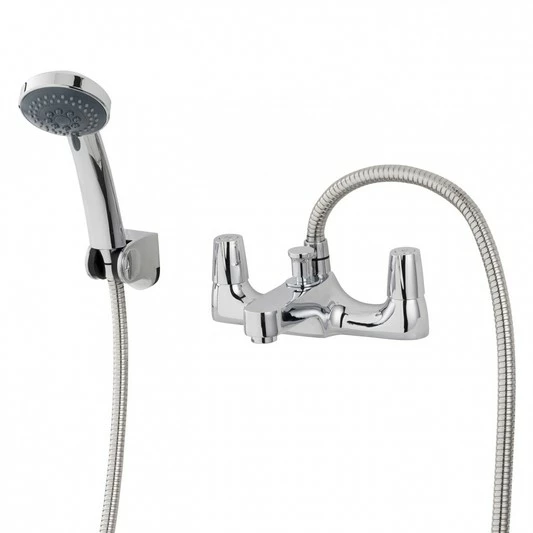

This durable bath shower mixer interchangeably diverts water flow
between your bath and a three spray pattern rub clean shower head
(holder supplied), giving you one simple solution whether you wish to
have a bath or a shower. This bath shower mixer is supplied with an
extended 1.75m hose to offer additional reach in a bathtub, ideal for
washing children’s hair or rinsing a bathtub. Suitable for use with all
water systems, including gravity fed, the Exe bath shower mixer delivers
generous flow rates for a superb shower.

Diverts between bath and handset
Durable design including ceramic disc flow control
Easy to operate quarter turn controls
Includes extended 1.75m hose and a three spray rub clean shower head (with holder)
Manual temperature control

Product Specification

Colour: Chrome
Guarantee: 5 Years
Inlet Connection: ¾” BSP
Minimum Running Pressure: 0.1 Bar
Spray Modes: Multi Spray
Temperature Control: Manual

Temperature Control and Flow Performance
Temperature Control	Manual
Open Outlet Flow Rate	9 l/min at 0.1 Bar (shower) 15 l/min at 0.1 Bar (Bath)
Maximum Flow Rate with Flow Limiters Fitted	12 l/min
Safety
Installation Set Maximum Temperature Limit	No
Adjustable Maximum Temperature Stop	No
Automatic Shutdown	No
Controls
Separate Flow and Temperature Controls	No
Combined Flow and Temperature Control	Yes
Temperature Control	Yes
Flow Diverter Control	Yes
Combined Flow and Diverter Control	No
Shower Fittings
Number of Spray Patterns (Showerhead 1)	3
Shower Head Diameter	80mm / 3.15 Inches
Rub Clean Nozzles	Yes
Hose Length	1.75m anti-twist
Hose Retainer	No
Hose Material	Double interlocked stainless steel
Colours Available	Chrome
Finish
Finish	Chrome
Guarantee and Approvals
Guarantee	5 Years
Installation
Plumbing System	Suitable for all Systems
Water Entry Points	Rising
Inlet Connections	3/4” BSP male threaded inlets for braided hose or rigid tap connector
Pipe Inlet Centres	180mm
Outlet Connection	1/2″ BSP Bottom
Minimum Running Pressure / Flow	0.1 Bar @ 9 l/min (each tap)
Maximum Running Pressure	5 Bar
Maximum Static Pressure	10 Bar
